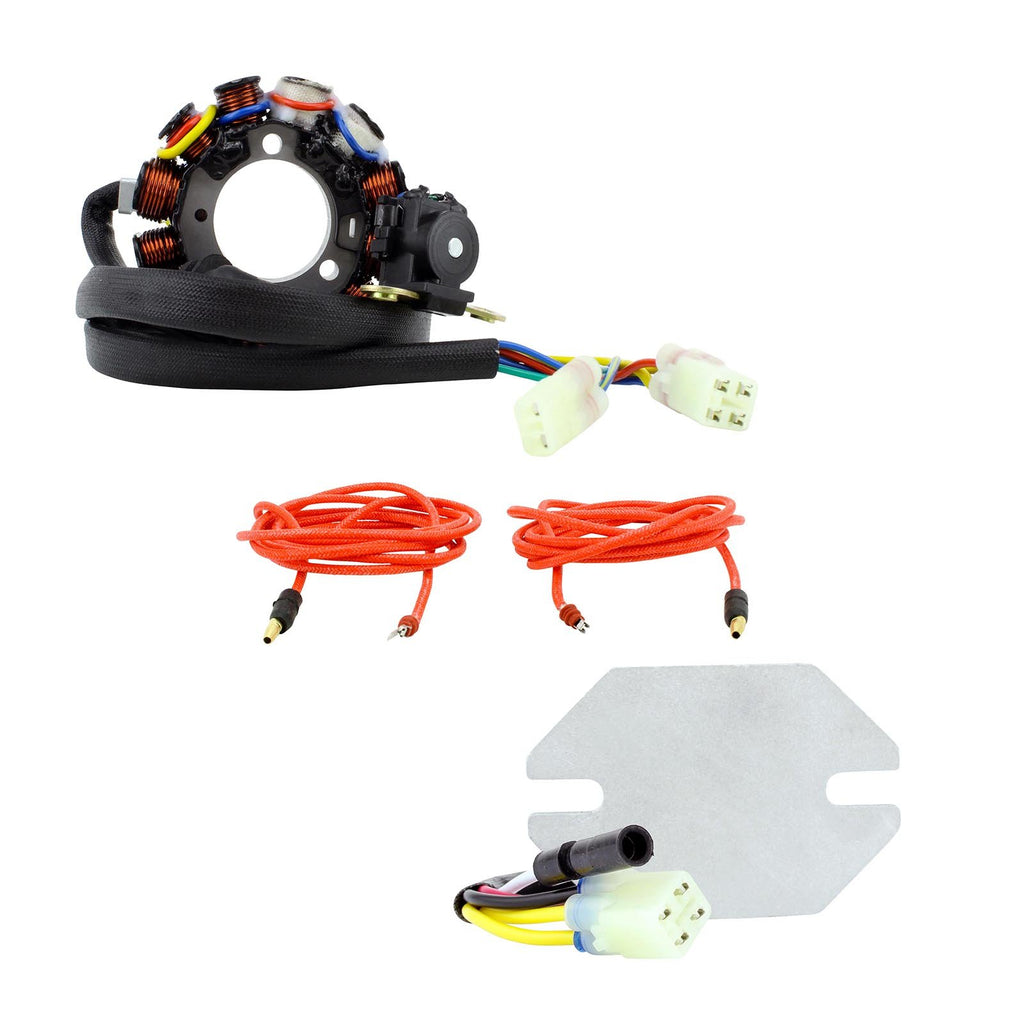

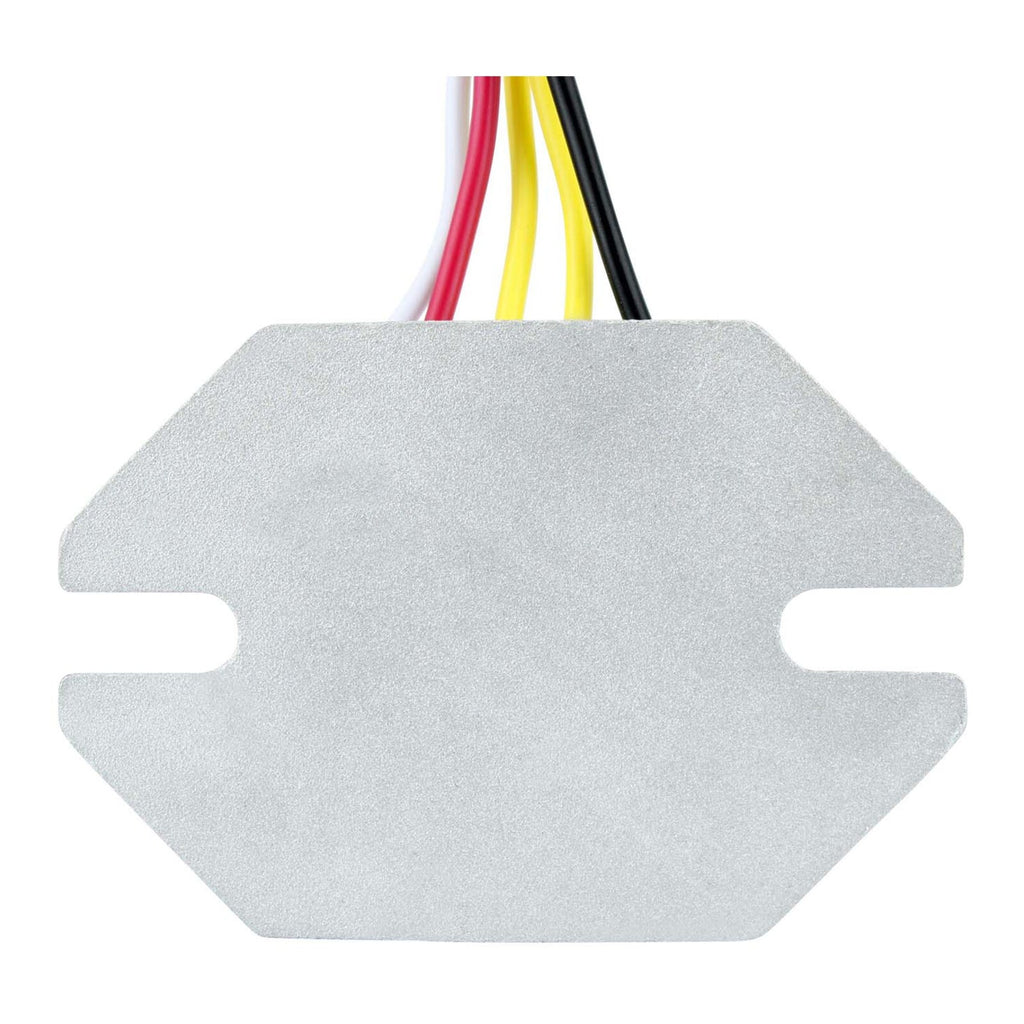

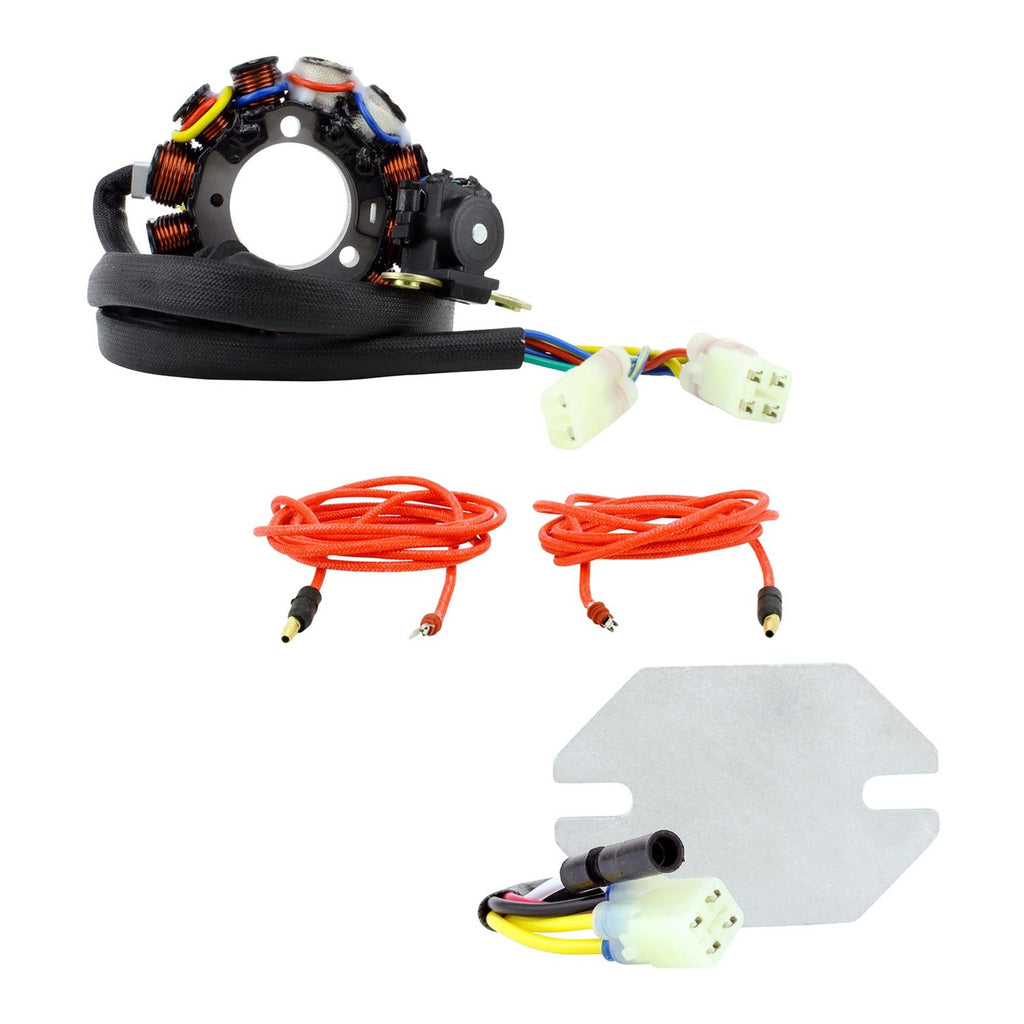

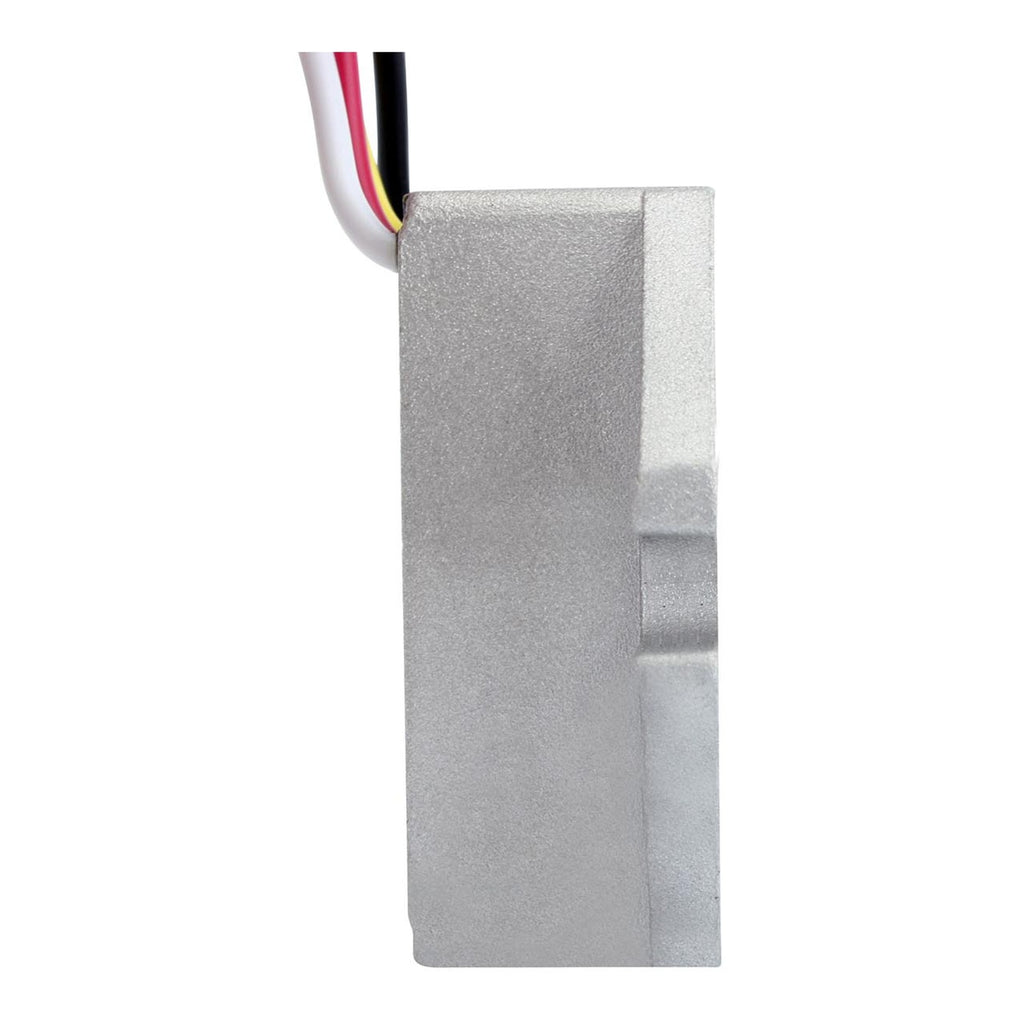

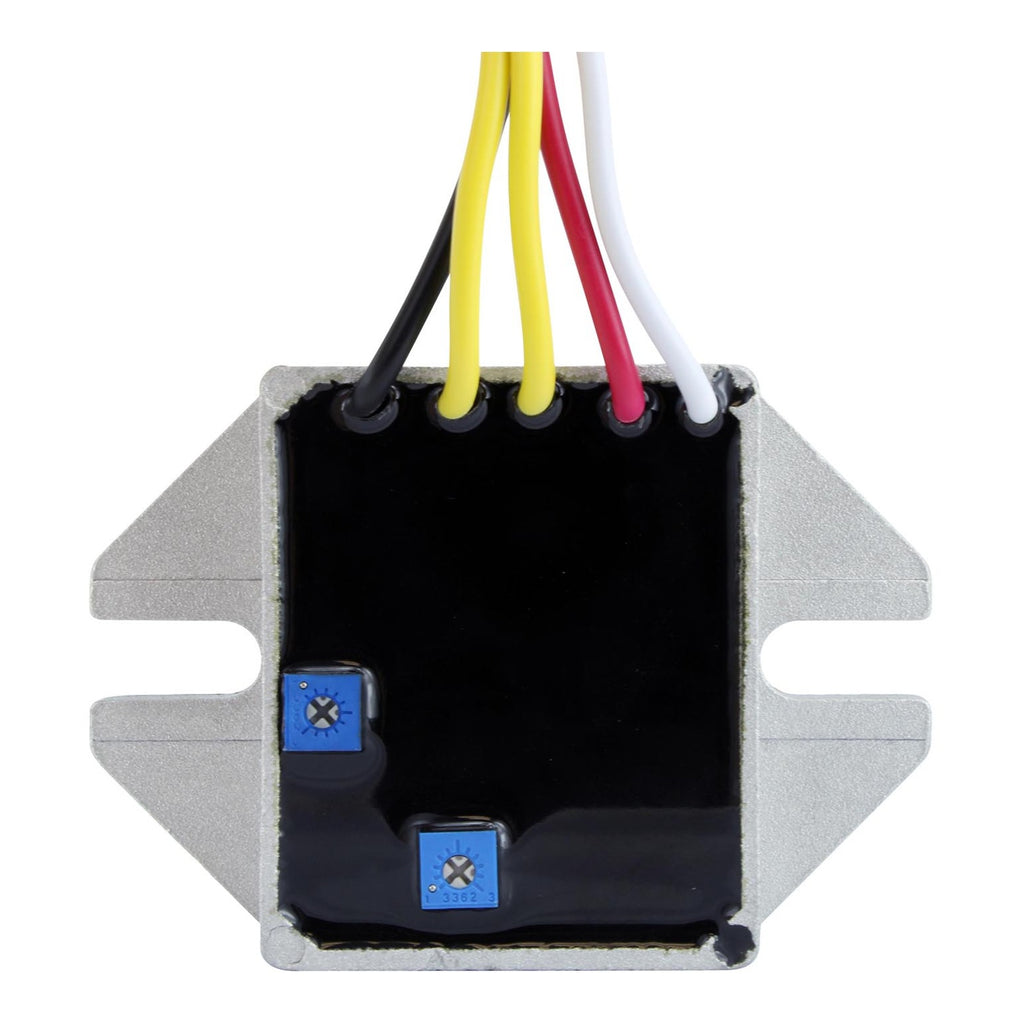

This RMSTATOR kit provides the stator with the higher power needed to make starting easier and turn on auxiliary lights and other accessories. Designed to work with the DC system, this set of parts are built-in relays that activate the switched 12V DC output line only when the motor is running.Do you often forget to turn off your lights No more worries!This kit will be perfect for you because the adjustable shut-off delay will turn them off automatically! Stator: DC stators compatible with lighting systems of equal or less power Replace the OEM and increases power output significantly. Pick up pulsar coil included Connector included Rubber grommet included Voltage Regulator Rectifier: No assembly required Higher grade of electric components. The quality exceeds the OEM equipment Specifications: < strongStator: Interior diameter: 34mm Exterior diameter: 72mm Thickness: 15mm Length of wires stator to grommet: 80mm Length of wires grommet to plug: 660mm Length of pickup coil's wire to grommet: 60mm Number of wires: 6 Number of plugs: 2 Number of pins: 6 Alternator : Between each Yellow = 0.4 ohms +-20% Pickup : Green/White to Blue/White = 260 ohms +-20% Source: Blue to Red = 20 ohms +-20% Voltage Regulator Rectifier Width: 53.6mm Length: 79mm Height: 22mm Wires length: 250mm Fixation holes centre to centre: 62mm Number of wires: 5 Minimum Charging Voltage: 14.5V +- 0.5V Maximum Charging Current: 50A / 500W Open Circuit Voltage: 15V Operation Temperature: -20 to 85 Harnesses Wires length: 145mm
Fits: Honda CRF450X 2005-2018
