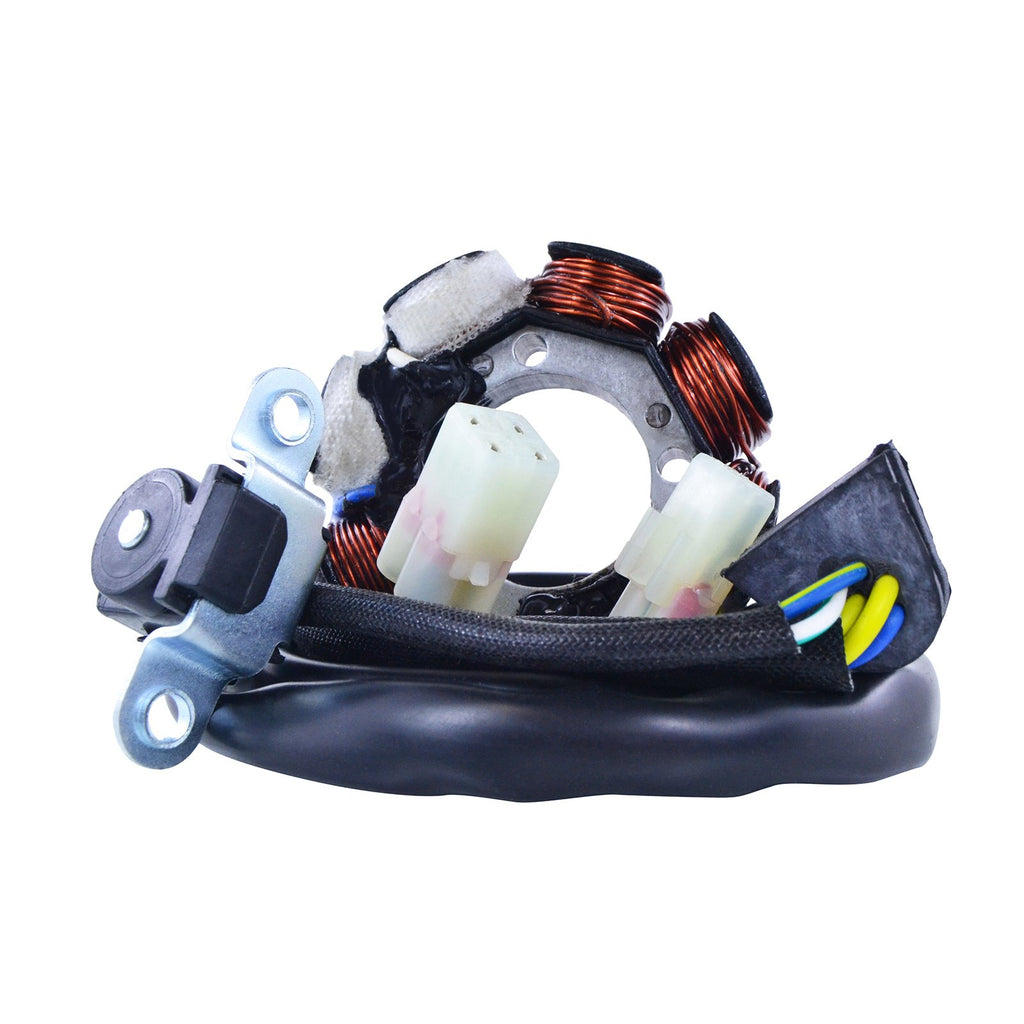

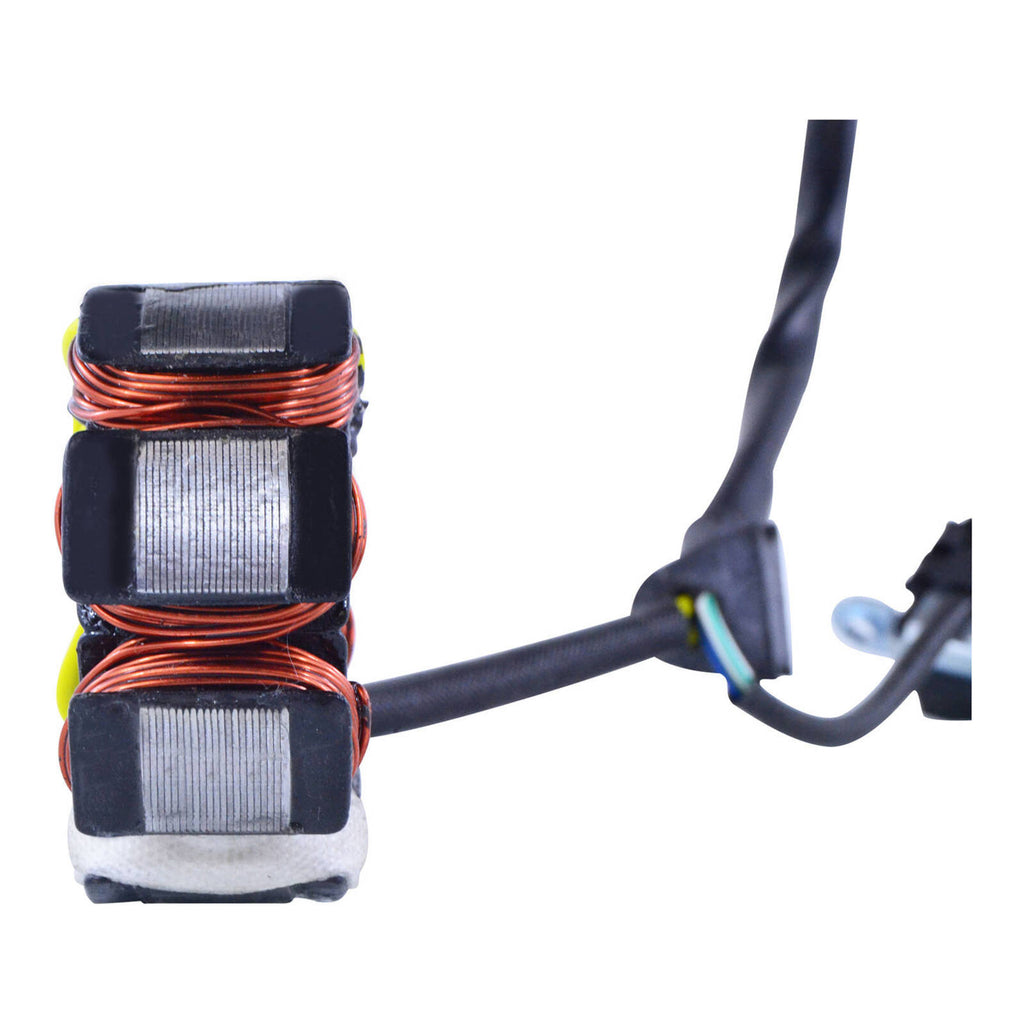

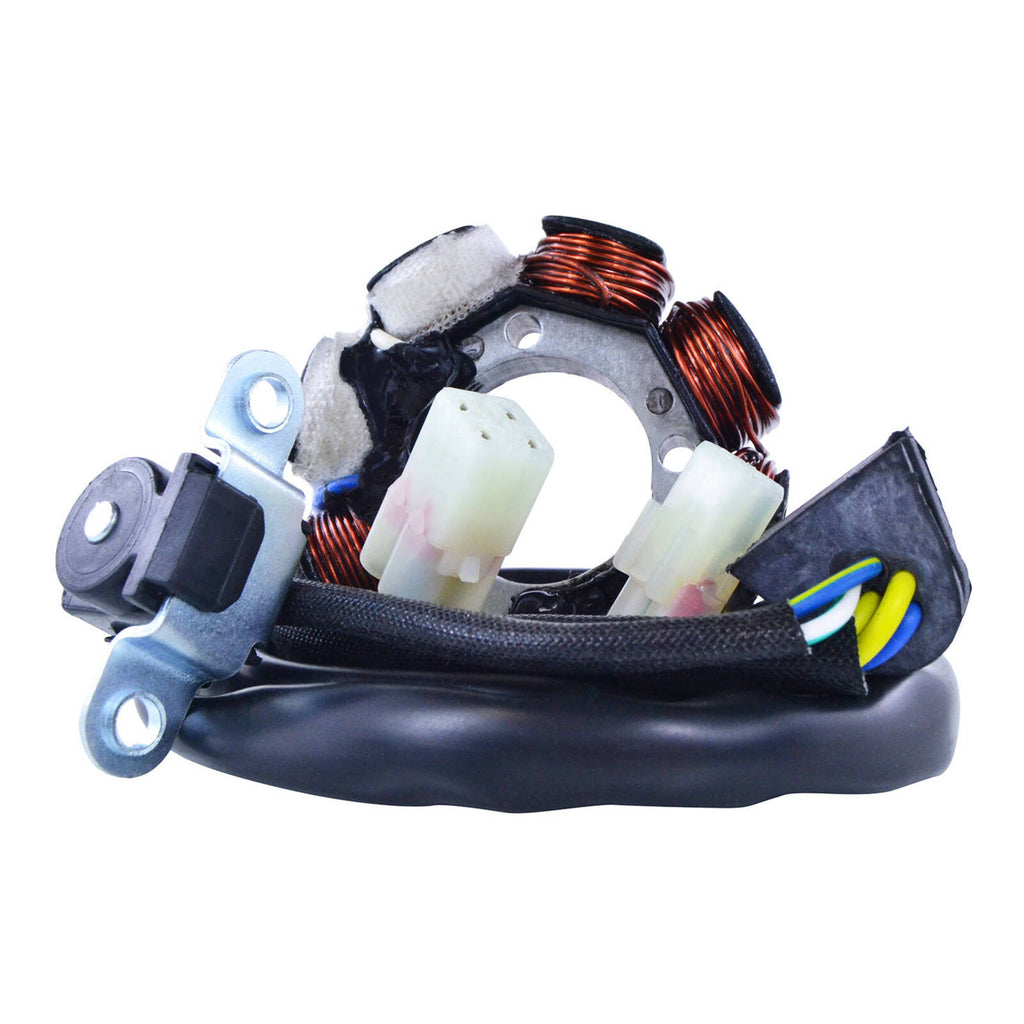

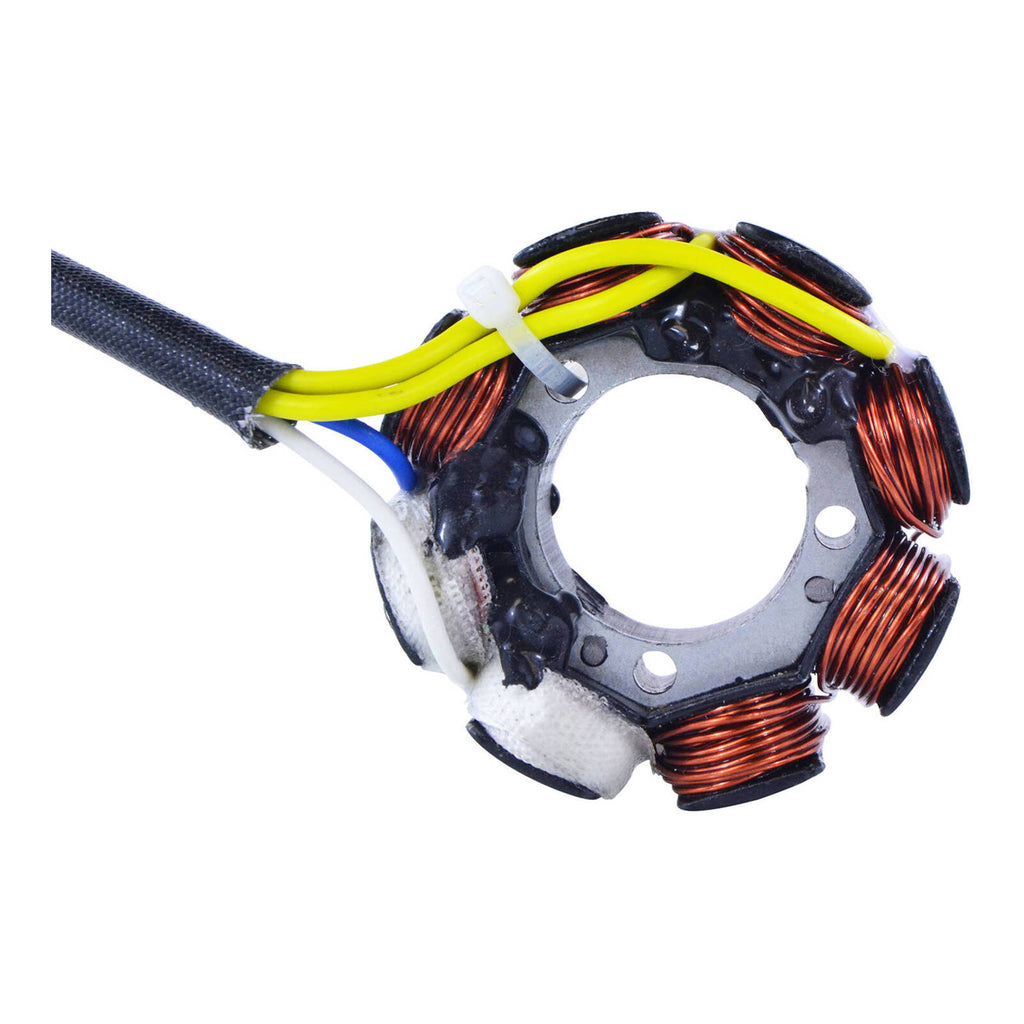

Voltage regulator rectifier : No assembly required Higher grade of electric components. The quality exceeds the OEM equipment Stator Dimensions: diameter: 28 mm Exterior diameter: 61 mm Thickness: 14 mm Length of wires stator to grommet: 100 mm Length of wires grommet to plug: 660 mm Length of pickup coil's wire to grommet: 65 mm Other specifications: Number of wires: 6 Number of plugs: 4 Number of pins: 6 Wire to wire resistance: Alternator: Yellow between each Yellow = 0.5 ohms +-20% Pickup: Blue/yellow to Green/White = 267 ohms +-20% Source: Blue to White = 24 ohms +-20% Voltage Regulator Rectifier Dimensions: Width: 44 mm Length: 79 mm Height: 22 mm Wires length: 250 mm Fixation holes center to center: 62 mm Other specifications: Number of wires: 5 Minimum Charging Voltage: 14.5 V +- 0.5 V Maximum Charging Current: 50 A / 500 W Open Circuit Voltage: 15 V Operation Temperature: -20 to 85
Fits: Honda CRF250X 2004-2007 2009 2012-2017
