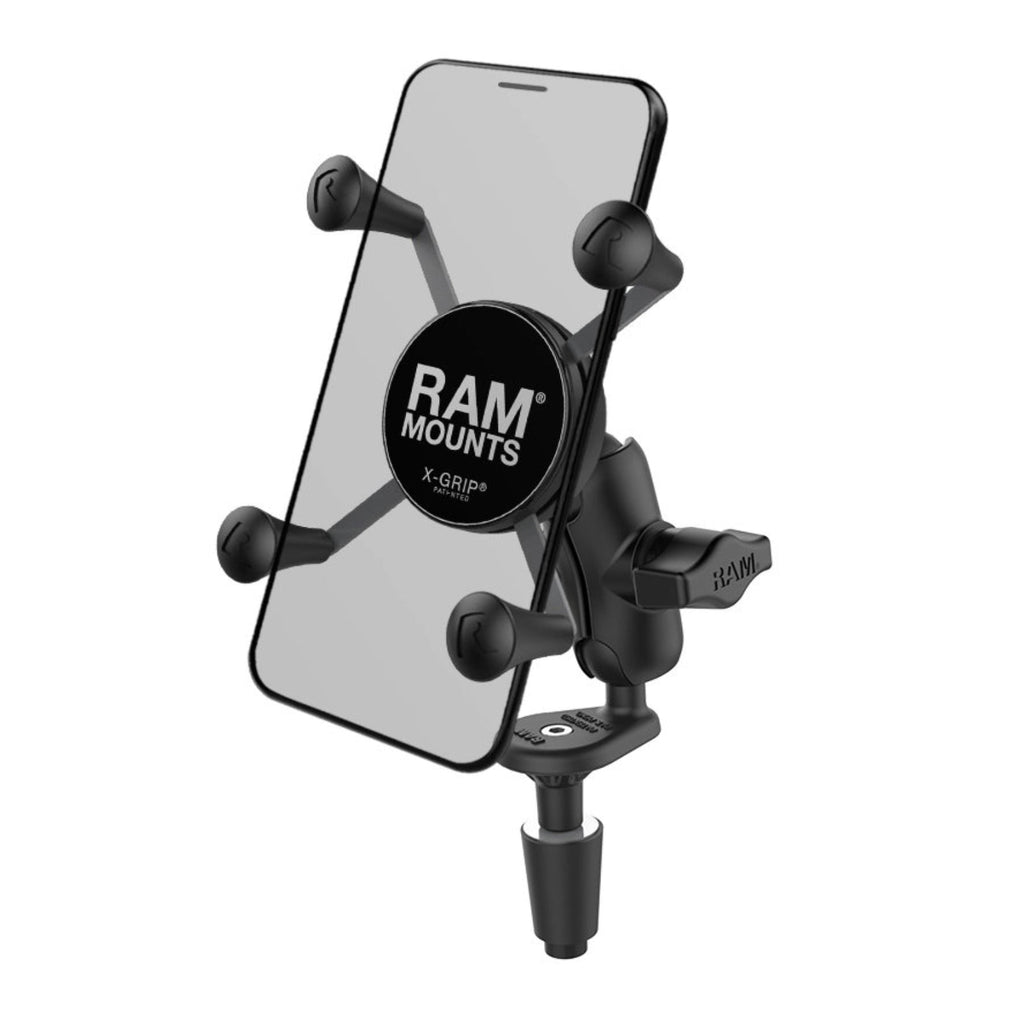

Designed to fit into the cylindrical bore wall of fork stems that measure 12mm to 38mm (.5” to 1.49”) in diameter, the RAM-B-176-A-UN7U consists of a fork stem base, short length double socket arm, and the popular spring-loaded RAM^® X-Grip^® phone holder. The RAM^® X-Grip^® features an 'X' design that expands and contracts to provide a perfect fit for your device – even if it's in a case. Made of high-strength composite and stainless steel, this version of the RAM^® X-Grip^® fits phones ranging from 1.87" to 3.25" in width and keeps your device completely functional and accessible. RAM^® ball and socket technology allow for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM^® X-Grip^® includes a device tether that is recommended for added security and peace of mind.

Features:

• Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
• Includes motorcycle fork stem base that works with stems 12mm to 38mm in diameter and short length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of stainless steel components, high-strength composites, and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Specifications:

• CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
• HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25" (82.5mm), Depth Range: 0.875" (22.2mm) max
• SOCKET-TO-SOCKET LENGTH: 1.75" (44.4mm)
• BALL SIZE: B Size (1", 25.4mm)

Assembly Hardware Included:

• x1 Optional Tether
• x1 Glue Tube for Rubber Caps
• x1 Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
• x1 M5 x 60mm Machine Screw
• x1 Steel Washer Set
• x1 Nut Pocket Washer Set
• x1 Brass Nylock Nut
