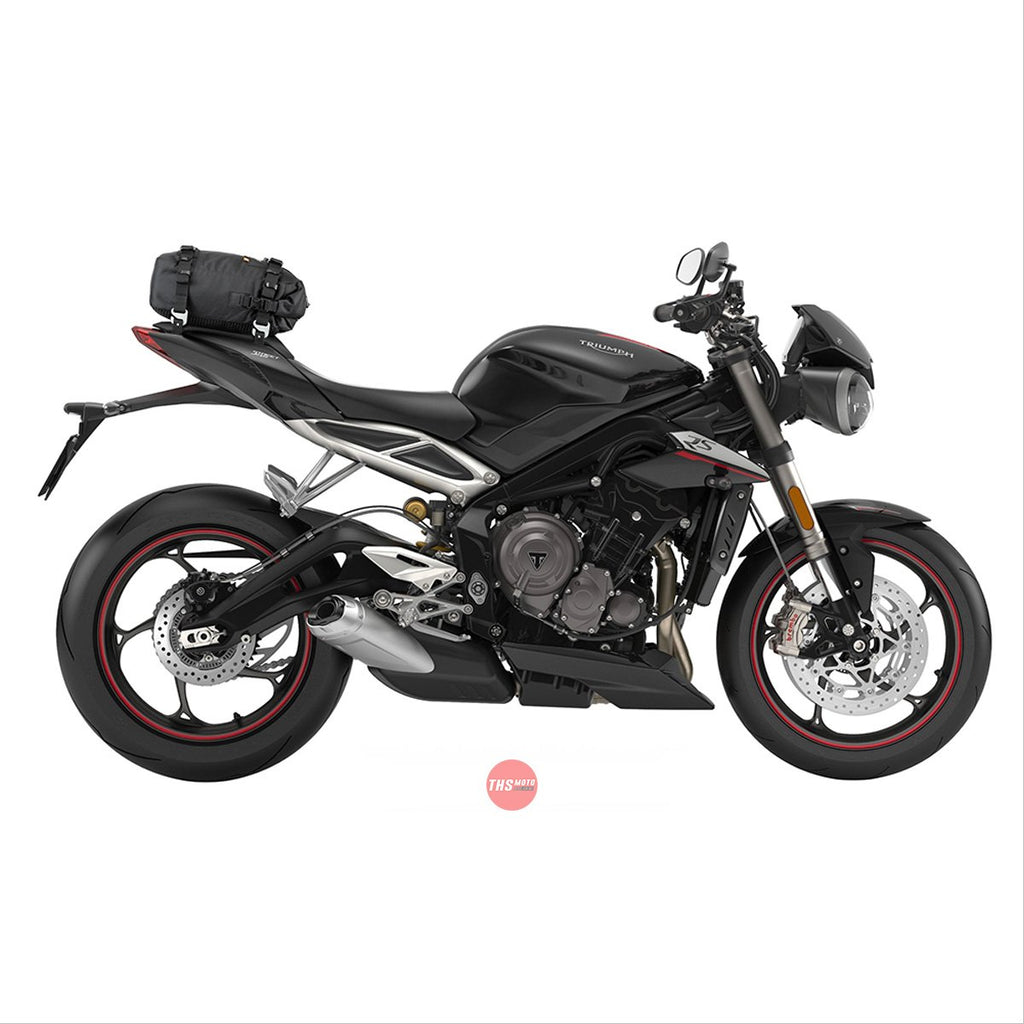

TRIUMPH STREET TRIPLE 765 specific fitting hardware for US-Drypacks.

The kit consists of high quality hypalon & nylon webbing loops, that easily fit under the pillion seat using the existing mounting locations.

Once fitted, they provide strong hook-on points for any Kriega US-Drypack or US-Drypack Combo.

PACK CONTENTS

2 x bolt-on loops - 95mm - 6mm hole
2 x bolt-on loops - 65mm - 5mm hole
4 x M6 washers
4 x M5 washers

FITTING

Slide an M6 washer inside each hypalon end of the bolt-on loops.

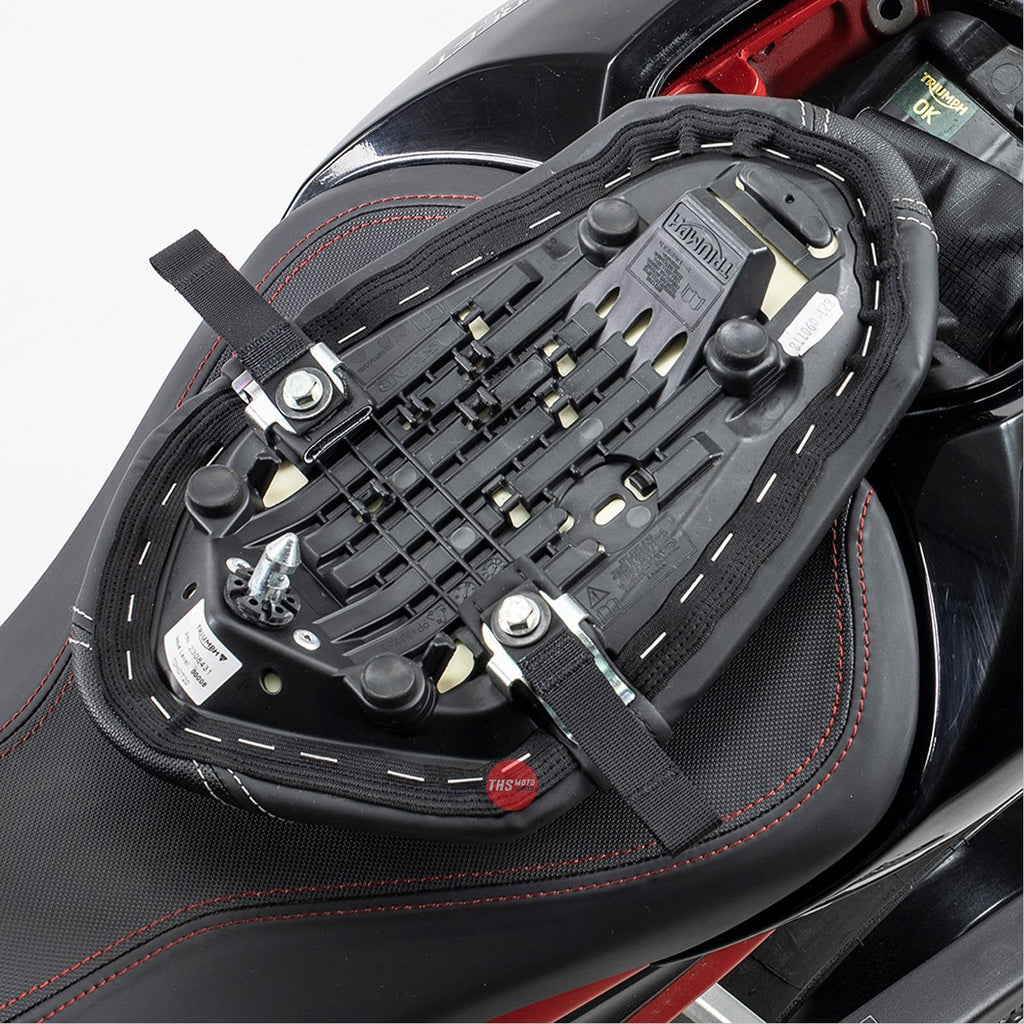

Add an M6 washer on top and mount the 95mm loops to the underside of the seat using existing seat strap bolts.

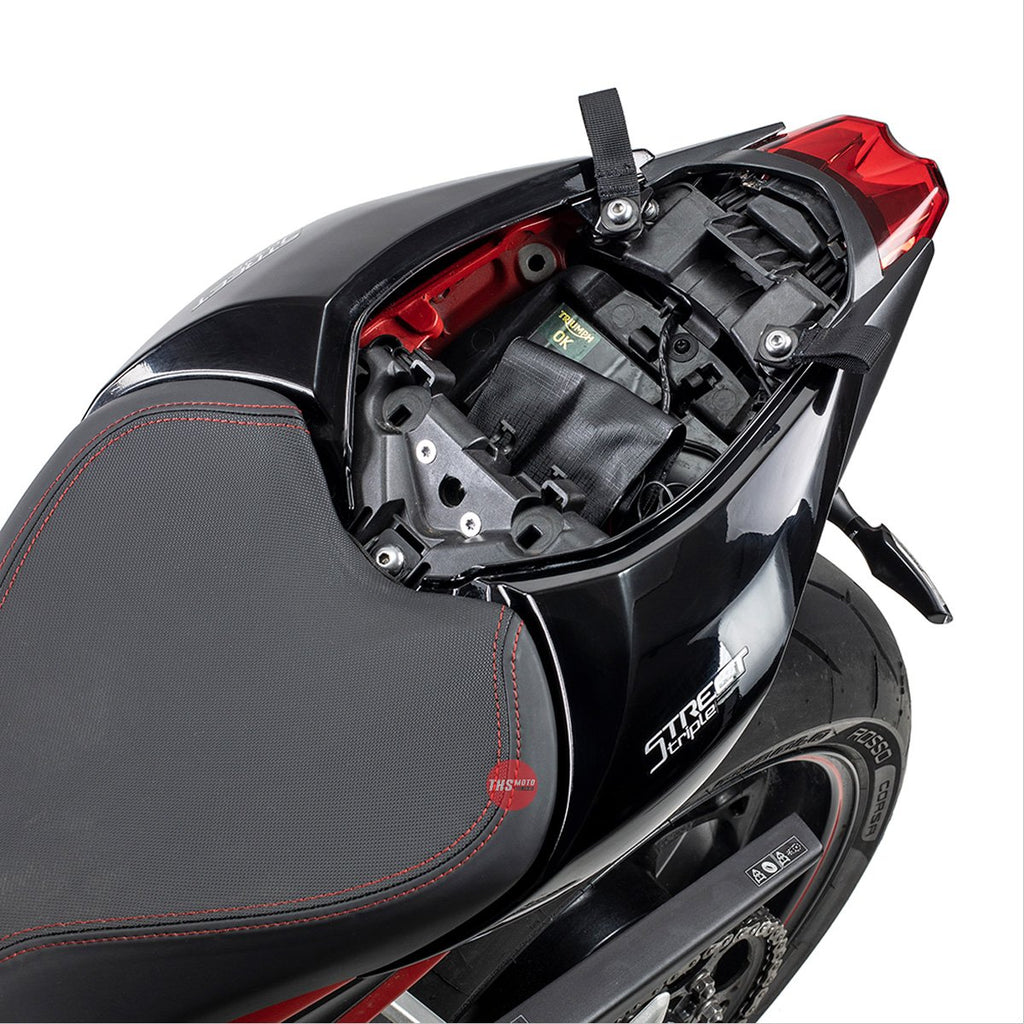

Mount the 65mm loops in the same way to the bike subframe using the M5 washers and existing bolts as illustrated.

WEIGHT
20g
