Description

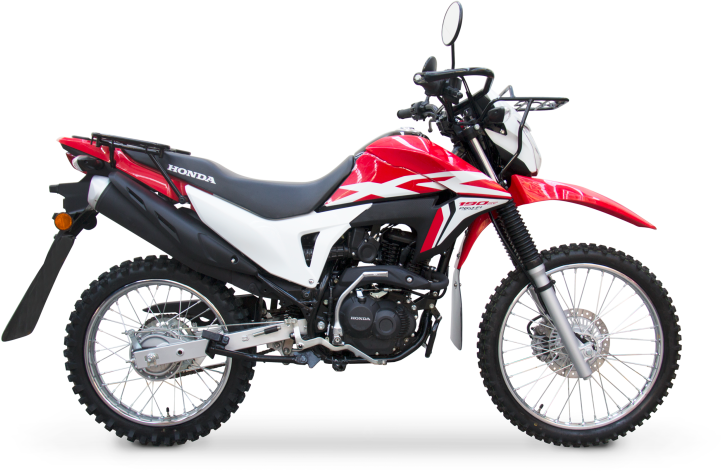

The XR190 is Honda’s unbeatable all-new two-wheeled farm machine. This new Fuel injected machine is the big brother of the XR150. With rugged capability the XR190 is now the pinnacle of two-wheel farm bikes.
With a super reliable 184cc engine the XR190 provides the smooth strong power needed on farm.With generous carry rack capacity, dual side stands, lever guards and extra mud protection the XR190 is ready to get to work.
As a bonus the XR190 is fully road registrable and LAMS approved.
ENGINE
| Engine Type | Air-cooled, 4 stroke Single Cylinder |
| CC Rating | 184.cc |
| Bore and Stroke | 61mm X 63.1mm |
| Ignition | Full-transistorized type |
| Carburetion | Electronic Fuel Injection |
| Compression Ratio | 9.5:1 |
TRANSMISSION
| Starter | Electric & Kick |
| Gearbox | Multiplate Hydraulic |
| Final Drive | Chain drive – geared for NZ farming conditions |
| Transmission | 5 Speed |
WHEELS, SUSPENSION & BRAKES
| Suspension Front | Telescopic Fork |
| Suspension Rear | Swing Arm - Mono Shock |
| Brakes Front | Hydraulic Disc |
| Brakes Rear | Drum |
| Tyres Front | 2.75 – 21 |
| Tyres Rear | 110/90-18 |
DIMENSIONS & WEIGHT
| Wheelbase | 1,369 mm |
| Seat Height | 823 mm |
| GroundClearance | 237mm |
| Kerb Weight | 137.0 kg |
| Fuel Capacity | 12.0 litres |
| Dimensions | 2,103 X 842 X 1,127 mm |
