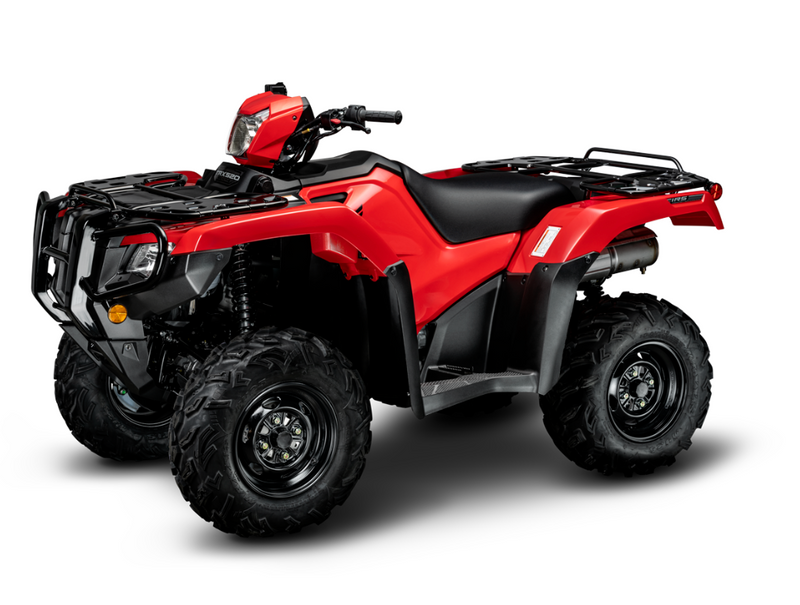

Honda TRX520FM6 EPS Power Steering


Price:
Sale price$22,131.00

Prices Include GST

This product is only available in-store and cannot be purchased online, please contact your local branch. Free freight and Afterpay are not available on this product.

Description



There’s big news this year for the Honda Foreman line-up. It starts with a new, bigger 518cc engine, and continues with a host of other improvements. For those looking for a plush and smooth ride it’s easy to choose the TRX520FM6. With independent rear suspension (IRS), a manual transmission and power steering, this is an unbelievably capable bike that will provide all-day comfort on the farm.

When you need a durable manual machine that can handle the toughest of terrain, and you also need a large towing capacity, the new TRX520FM6 is the perfect choice. The larger engine provides improved power and torque where you need it - in the low end and midrange - for quicker acceleration, better ascending and improved hauling, complementing the massive 600kg towing capacity. A handlebar-mounted switch makes it easy to select between two-wheel drive, four-wheel drive and four-wheel drive with the front differential locked.

The new 1.9L utility box with weatherproof cover on the front deck provides a second storage compartment, while the newly engineered front and rear cargo racks provide more loading options. New styling completes the package and provides a more aggressive stance, making the FM6 better than ever.






Utility Box - A 1.9-litre utility box with weatherproof cover is added to the front deck.




Cargo Racks - Newly engineered front and rear cargo racks provide more loading options and accept new Honda Pro Connect accessories for smooth integration.

Front bumper and grill - Newly redesigned front bumper and grill further emphasises the Foreman's aggressive stance.


ENGINE
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke
CC Rating 518cc
Bore and Stroke 96.0mm x 71.5mm
Ignition Full-transistorised with electronic advance
Carburetion Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio 9.5:1



TRANSMISSION
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission Manual 5-speed with reverse



WHEELS, SUSPENSION & BRAKES
Suspension Front Independent double wishbone - 185mm of travel
Suspension Rear

Independent rear suspension - dual arm - 215mm of travel
Brakes Front Dual hydraulic - 190mm discs
Brakes Rear

Single hydraulic - 170mm disc
Tyres Front 25 x 8 - 12
Tyres Rear 25 x 10 - 12



DIMENSIONS & WEIGHT
Wheelbase 1,294mm
Seat Height 924mm
GroundClearance 250mm
Kerb Weight 318kg
Fuel Capacity 14.7litres incl 4.9litres reserve
Dimensions 2185mm(L) x 1205mm(W) x 1238mm(H)
Carrier Capacity 45kg Front rack – 85kg Rear rack
Towing Capacity 600kg
