Description

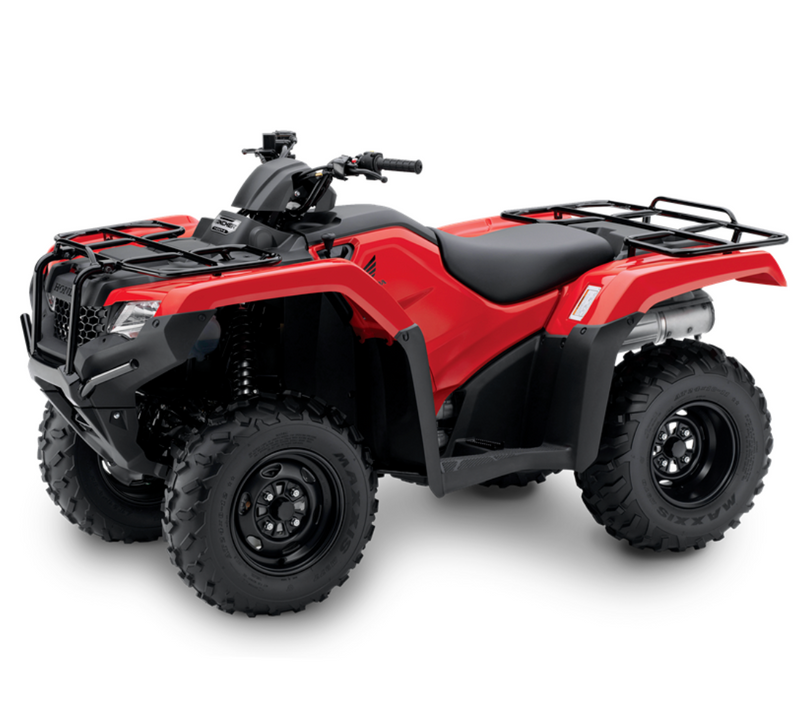

TRX420FM1
The 420 now utilises the same frame as the 500cc models. The frame is 20 percent stiffer than before. Meaning your ATV can really handle the tough stuff. The TRX420FM1 is one of Honda’s most loved and biggest selling ATVs and now it’s even better. It’s your do-everything benchmark seller with a fuel-injected 420cc, OHV liquid-cooled engine and a strong 5-speed manual transmission. This ATV has all the features to make easy work of hilly terrain.
The Programmed Fuel Injection system improves power delivery and throttle response. It also increases fuel economy so you can cover more ground out on the job. Front and rear suspension systems feature generous travel for a plush and controlled ride. The enclosed-axle type swing arm improves durability, the 420FM1 is ready for anything.
| Engine Type | Liquid-cooled OHV longitudinally mounted single-cylinder four-stroke |
| CC Rating | 420cc |
| Bore and Stroke | 86.5mm x 71.5mm |
| Ignition | Full-transistorised type with electronic advance |
| Carburetion | Programmed Fuel Injection |
| Starter | Electric with auxiliary recoil standard |
| Gearbox | 5 speed manual with Reverse |
| Final Drive | Direct front and rear driveshafts |
| Suspension Front | Independent double-wishbone; 170 mm travel |
| Suspension Rear | Swingarm with single shock; 170 mm travel |
| Brakes Front | Dual hydraulic discs |
| Brakes Rear | Sealed mechanical drum |
| Tyres Front | Maxxis 24 x 8-12 |
| Tyres Rear | Maxxis 24 x 10-11 |
| Wheelbase | 1,268mm |
| Seat Height | 856mm |
| GroundClearance | 183mm |
| Kerb Weight | 277kg |
| Fuel Capacity | 14.7 litres including 4.9 litres reserve |
| Dimensions | 2,103mm(L) x 1,205mm(W) x 1,174mm(H) |
