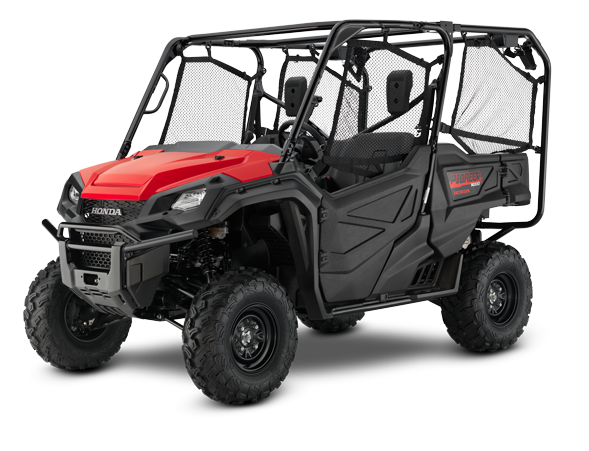

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. From the 450kg hauling to the 900kg towing capacity, it is designed to take what you need to where you need it. Choose from 3, 4 or 5 seats depending on what your situation requires. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.
And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance and features, purpose-built by the best in the business.
Engine Type |
999cc liquid-cooled OHC Unicam parallel-twin four-stroke, 4 valves/cylinder |
CC Rating |
999cc |
Bore and Stroke |
92mm x 75.1mm |
Ignition |
Full transistorised ignition |
Compression Ratio |
10:01 |
Starter |
Electric |
Gearbox |
6-speed fully Automatic DCT w/ Sport mode, paddle-shift manual |
Transmission |
Fully-Automatic Dual Clutch Transmission (DCT) with six forward gears and Reverse. Four drive modes include 2WD, 4WD, Turf and Differential lock. |
WHEELS, SUSPENSION & BRAKES
Suspension Front |
Independent double-wishbone; 267mm travel |
Suspension Rear |
Independent double-wishbone; 254mm travel |
Brakes Front |
Hydraulic w/ (2) 210mm discs |
Brakes Rear |
Hydraulic w/ (2) 210mm discs |
Tyres Front |
27 x 9-14 - steel wheels |
Tyres Rear |
27 x 11-14 - steel wheels |
Wheelbase |
2036mm |
GroundClearance |
314mm |
Kerb Weight |
768kg |
Fuel Capacity |
30 litres |
Dimensions |
2961mm(L) x 1599mm(W) x 1940mm(H) |
