Description

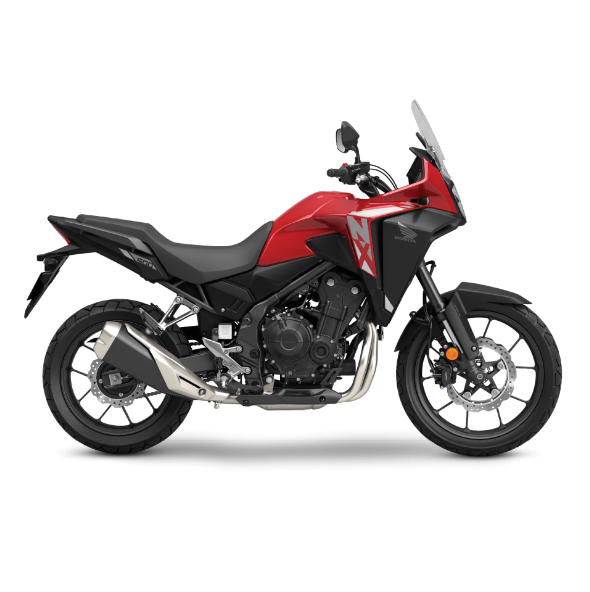

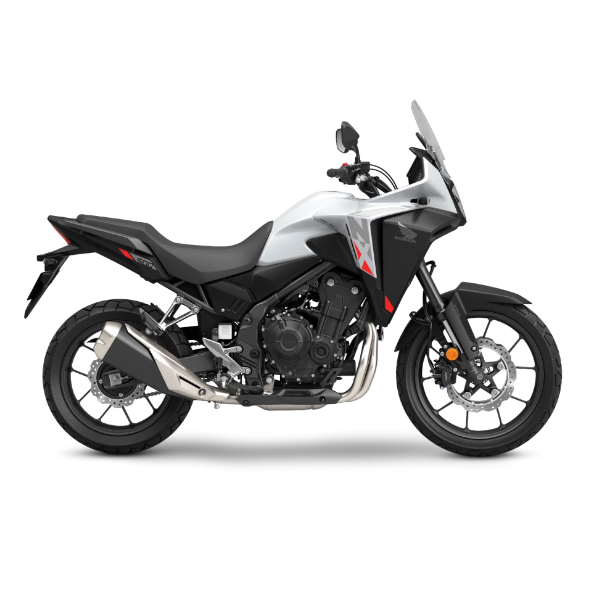

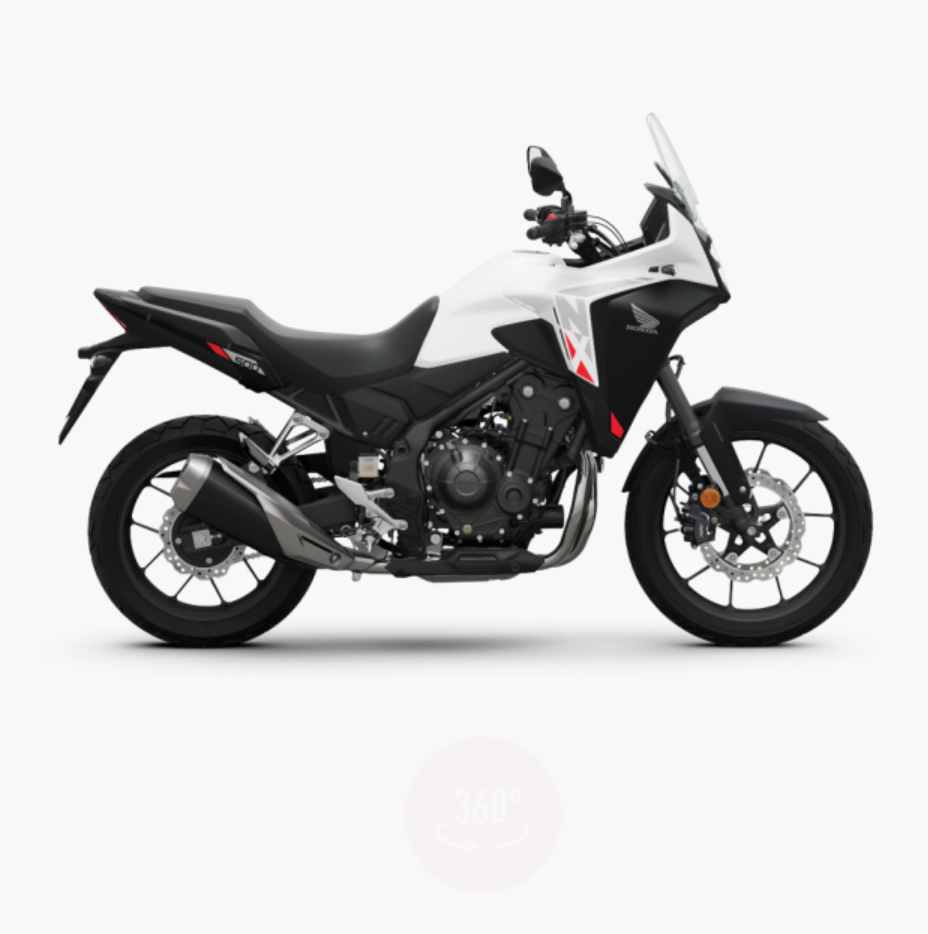

NX500
Where to? Your choice. The compact, versatile new NX500 offers perfect city agility and off-road ability. It’s comfortable too, with an aggressive, rally-style fairing and large screen shaped for wind protection. High specification technology includes 5-inch TFT screen. And its LAMS approved twin-cylinder engine delivers flexible – hugely enjoyable – performance with HSTC traction management. The adventure begins.
| Engine Type | Liquid Cooled 4-stroke DOHC |
| Displacement (CC) | 471 |
| Cylinders | 2 |
| Bore and Stroke | 67mm x 66.8mm |
| Compression Ratio | 10.7:1 |
| Fuel System | PGM-FI Electronic Fuel Injection |
| Final Drive | Chain |
| Transmission | 6-speed |
| Clutch | Wet multiplate, Assisted slipper clutch |
| Wheels Front | 19" Multi-spoke Cast Aluminium |
| Wheels Rear | 17" Multi-spoke Cast Aluminium |
| Suspension Front | Showa 41mm SFF-BP USD forks |
| Suspension Rear | Prolink mono with 5 stage pre-load adjuster, Steel hollow cross swingarm |
| Brakes Front | Dual 296mm disc with two piston calipers |
| Brakes Rear | Singe 240mm disc with single piston caliper |
| Tyres Front | 110/80R-19 |
| Tyres Rear | 160/60R-17 |
| Wheelbase | 1445mm |
| Seat Height | 830mm |
| GroundClearance | 180mm |
| Trail | 108mm |
| Kerb Weight | 196kg |
| Fuel Capacity | 17.5L |
Colour TFT Digital Display - New optical bonding technology reduces glare and improves readability on the new intuitive 5-inch TFT screen.
Disc Brakes with ABS - Dual front and single rear disc brakes, combined with standard Anti-lock Braking System (ABS) helps you make smoother, more controlled stops under less-than-ideal riding conditions.
Powerful New Headlight - The new headlight throws out strong beam penetration and wide light distribution either side - which means you see a lot more when cornering at night.
Twin Cylinder Engine - The light and narrow 471cc parallel cylinder engine offers plenty of power and torque off the bottom and in the midrange, striking the perfect balance of what a mid-sized motorcycle engine should be. PGM-FI continuously ensures the correct fuel mixture is delivered for the conditions, giving you crisp throttle response all riders can enjoy on, and off road.
Long Travel Suspension - Front suspension is made of Showa 41mm Separate Function Fork Big Piston (SFF-BP) inverted forks, set for precise reaction and feeel. The Pro-Link® rear suspension, with adjustable preload, gives you a comfortable ride over bumps, with superior riding comfort and handling.
