Athena Fork Oil Seal Kit 33x46x10.5 mm Fork oil seals
Features:
Increased fork smoothness
Significantly improved wear resistance
Excellent price-quality ratio

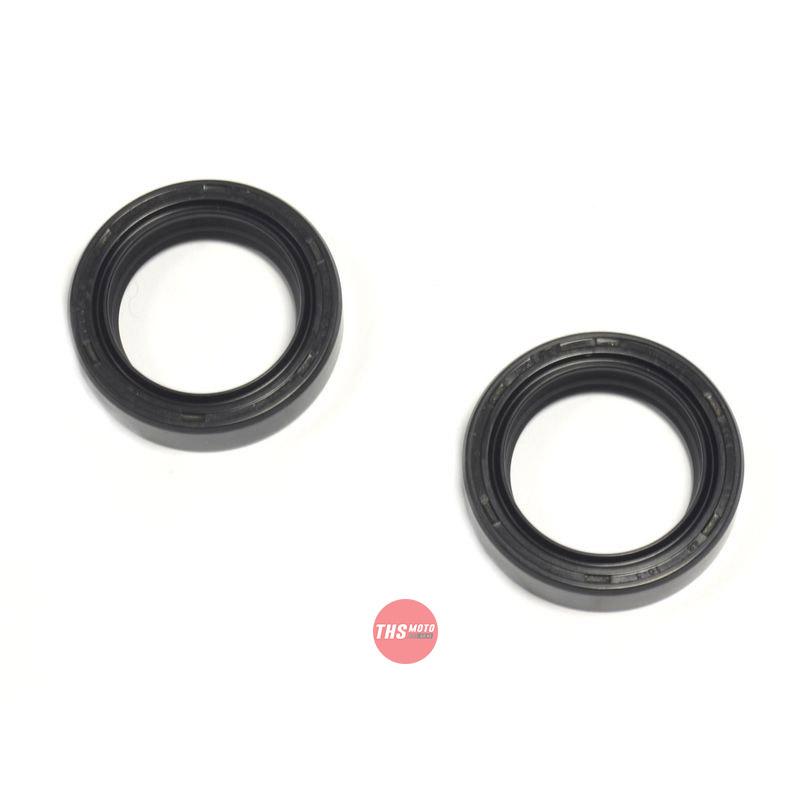

This kit is composed of two fork oil seals with exterior part in rubber, a single sealing lip and a dust seal lip. Athena has a full range of fork oil and dust seal kits. The quality of Athena fork oil and dust seals is superior compered to OEM's, guaranteeing excellent, smooth performance, seal at high temperatures and great resistance to abrasion.
Technical features
External Diameter (mm)
46
Internal Diameter (mm)
33
Material
Rubber
Oil Seal Structure
One seal lip and one dust lip
Oil Seal Total Height (mm)
10.5
OEM Codes
HONDA
91255413881
KAWASAKI
920491179
SUZUKI
5115344031
YAMAHA
1L92314500
Fits:
HONDA ATC BIG RED / X / S 200 1984-87
ATC ES BIG RED / SX 250 1985-87
CB 250 1973-82
CB 360 1974-76
CB FOUR 350 1972-75
CB FOUR SUPERSPORT 400 1975-80
CB SC / T 450 1982-86
CJ 250 1977-79
CJ 360 1976-79
CL 350 1973-74
CL 360 1974-75
CM A / C / E / T 400 1979-82
CM CUSTOM 450 1982-83
CMX 250 1985-15
CR R 80 1984-86
CX 500 1978-79
CX D DELUXE 500 1979-81
CX Z / A / B / CUSTOM 500 1979-80
SL 2 CYL 350 1970-71
TLR 200 1986-87
XL 200 1983-84
KAWASAKI KX 80 1983
KZ A / B / BR:CSR 305 1981-88
KZ A / B/ C / D 400 1974-79
KZ D LTD 440 1980-83
LTD 450 1985
S1 250 1972-75
S2 350 1972-73
S3 400 1974-75
Z 440 1979-84
Z A1 / 3 250 1979-83
Z B1 / 2 250 1979-83
Z B1 / B2 / G1 CUSTOM 400 1974-82
SUZUKI GN 250 1982-96
GS 250 1979-82
GS 400 1977-78
GS 425 1979
GS E / L / S / T / LZ 450 1980-85
GT 250 1973-77
GT 380 1972-77
RM 80 1986-90
SYM SYMPLY II 50 2014
X PRO 125 2013
YAMAHA XS 250 1977-81
XS 360 1975-78
XS 400 1977-82
