Athena Fork Oil Seal Kit 33x45x11 mm Fork oil seals
Features:
Increased fork smoothness
Significantly improved wear resistance
Excellent price-quality ratio

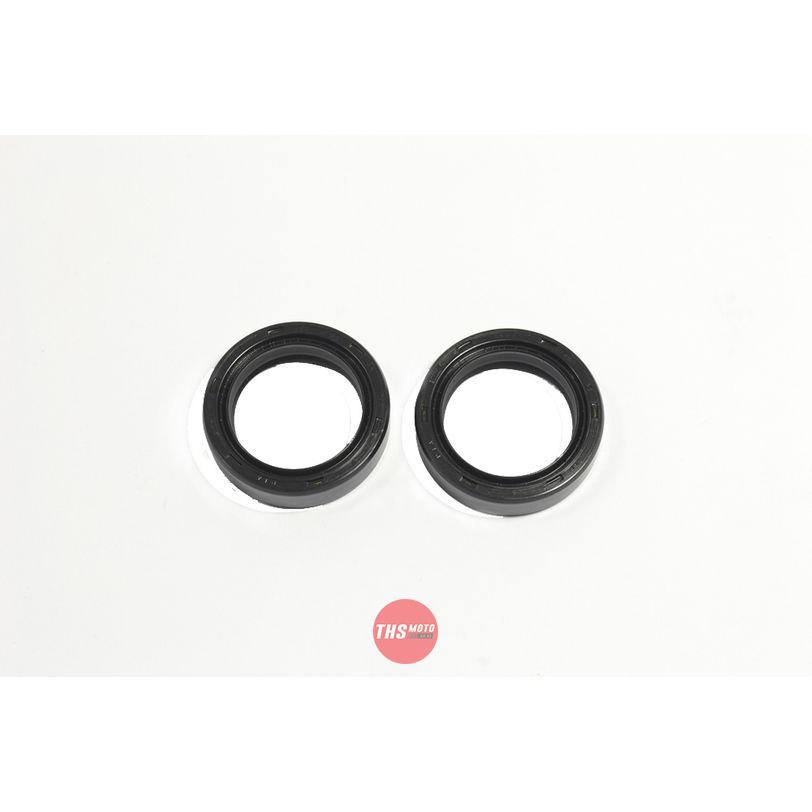

This kit is composed of two fork oil seals with exterior part in rubber, a single sealing lip and a dust seal lip. Athena has a full range of fork oil and dust seal kits. The quality of Athena fork oil and dust seals is superior compered to OEM's, guaranteeing excellent, smooth performance, seal at high temperatures and great resistance to abrasion.
Technical features
External Diameter (mm)
45
Internal Diameter (mm)
33
Material
Rubber
Oil Seal Structure
One seal lip and one dust lip
Oil Seal Total Height (mm)
11
OEM Codes
KAWASAKI
920491179
SUZUKI
5115329420
YAMAHA
52SF31450000
Fits:
KAWASAKI KX 80 1984-85
MBK YP SKYLINER 4T 125 1998-01
YP SKYLINER 4T 150 2000-02
YAMAHA BW 350 1988
BW N / S / ES / ET / EU 200 1985-88
HW XENTER 125 2012-17
HW XENTER 150 2012-16
SRX T / TC 250 1987
TW 200 1987-15
TZR R / RR 125 1987-93
YP MAJESTY 4T LC 150 2000-01
YP-MAJESTY 4T 125 1998-01
YZ LC 80 1983-92
