This convenient Denali lighting kit combines several high-quality Denali components including a wiring harness, light mount, and lights. It's designed to give you everything you need to equip your machine with an improved lighting setup and illuminate your riding experience.

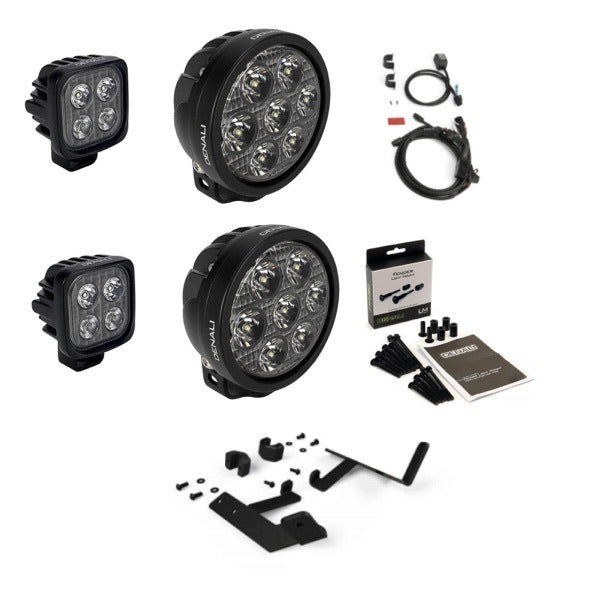

Kit contains:

1x DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) (SKU: DEDNLWHS10900)

1x DENALI DRIVING LIGHT MOUNT BRKTS KTM 790 ADV / ADV R '19-'20 (SKU: DELAH0410200)

1x DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] (SKU: DELAH0010700B)

2x DENALI S4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (DEDNLS4050)

2x DENALI D7 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE (SKU: DEDNLD7050)





DENALI 2.0 PREMIUM WIRING HARNESS KIT (REV08) details:

This DENALI Premium Wiring Harness features high-quality waterproof components and is designed to power two DENALI LED Light Pods. It features low-profile, water-tight connectors and premium moulded wire to ensure moisture is kept out of the system. The harness includes a completely sealed, waterproof switch that was engineered from the ground up to withstand harsh out-door abuse on powersports vehicles. It’s clever design can be either flush or bar mounted.

What’s In The Box?

• (x1) Premium Wiring Harness
• (x1) Single-Intensity Relay
• (x1) DrySeal™ ON-OFF Waterproof Illuminated Switch
• (x1) 7/8 inch Handlebar Switch Mount
• (x1) 1 inch Handlebar Switch Mount
• (x2) Self Tapping Screw
• (x1) Adhesive Pad
• (x4) Zip Ties



DENALI DRIVING LIGHT MOUNT BRKTS KTM 790 ADV / ADV R '19-'20 details:

This vehicle-specific driving light mount allows you to mount any DENALI driving light in the optimum location on your motorcycle. This kit includes sturdy anodised aluminium clamps and beefy powder-coated steel brackets with an M8 mounting hole and all necessary mounting hardware.

Vehicle Fitment

• KTM 790 Adventure 2019-2020
• KTM 790 Adventure R 2019-2020
• KTM 790 Aventure R Rally 2020-2020





DENALI FENDER MNT DM/D2 LIGHTS [FITS M5, M6 +FENDER MNT BLK] details:

This single point mount positions our smaller lights on the front fender to create the most low profile mounting option. This mount is compatible with our DM and D2 light pods.





DENALI S4 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE details:

The S4 is the first light DENALI developed as part of the new S-Series product line. At more than 3000 lumens and economically priced, the S4 provides more light per dollar than just about anything else on the market. The new S-Series was specifically engineered to reduce cost without sacrificing performance, quality or durability. In fact, the S4 features the same high-intensity LEDs as the D-Series lights, but utilises a single-piece optic and sealed beam construction to reduce the number of components. The result is a durable high-performance light that won't break the bank.

The DENALI S4's fixed lens features two flood optics and two spot optics to create the ultimate hybrid beam pattern; a super wide close-range flood and a piercing spot beam in one housing. Consistent with D-Series lights, the S4 features DENALI’s innovative DataDim™ Technology that enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

Features:

• High-Intens ity Series Cree LEDs outputting 7665 lumens per pod
• DrySeal™ Submersible Waterproof light can withstand the most extreme environments
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless steel hardware included

Specifications:

• LEDs: (4) 7-Watt Cree XPL HI
• Power Draw: 2.3 Amps
• Beam Distance: 375 Feet
• Beam Width: 75 Feet
• Raw Lumens: 3066
• Intensity: Single Intensity Harness
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 2.75in square x 1.97in deep
• IP67 Waterproof & Submersible



What’s In The Box?

• 1x LED Light Pod
• 1x Hinge Mounts with M8 Stainless Steel Hardware
• 2x Zip Ties and 1x Adhesive Mounting Square





DENALI D7 LED LIGHT POD - DATADIM™ TECHNOLOGY - SINGLE details:

At over 15,000 lumens, the DENALI D7 light kit is one of the brightest LED lights under 4.5 inches period. A pair of D7s feature 14 high-intensity, 10-watt LEDs that are focused through a proprietary single-piece optic specifically engineered to create a full bodied spot beam that can reach over 1500ft at an intensity of 1.0 lux. A pair of D7s will outshine 14 D2 lights and produces more than twice the light output of the D4. Not only are the new D7s incredibly bright, but they're strong, too. The robust heatsink and Active Thermal Management work together to keep this high-powered lamp cool enough to maintain maximum light output when you need it most.

Because the new D7 has so much power, there's no need for a selection of optics. The standard optic set benefits from the raw power of this array to have best-in-class spot coverage at a distance, perfect for picking out wildlife way beyond the range of your motorcycle's normal high beam. With lumens to spare, the D7's optics were designed to preserve a near-flood-beam pattern, resulting in an amazingly wide (200ft) beam that helps illuminate the sides of the road. In a way, the combination of incredible intensity and optics that are neither too distance-focused or flood-oriented is the best of both worlds.

In other ways, the D7 lights follow DENALI's reputation for innovative features. The D7 features DENALI’s DataDim™ Technology, which enables the lights to be upgraded in seconds to dual intensity by connecting a plug-n-play DataDim™ Controller that will automatically switch the lights between half and full intensity with your vehicle's original high beam switch.

Features:

• Comprehensive LED light kit specifically designed for powersports applications
• High-Intensity Series Cree LEDs outputting 2190 lumens per kit
• DataDim™ equipped light pods and harness allow plug-n-play connection to the DataDim™ dimming controller
• Premium powersports harness with waterproof switch and handlebar switch mount included
• Plug-and-play installation. No wire cutting or splicing required.
• DrySeal™ Submersible Waterproof light and switch housings can withstand the most extreme environments
• Impact PC™ Polycarbonate bezels won't crack, fade or corrode like traditional aluminum bezels.
• LiveActive™ Thermal Management keeps the LEDs cool preventing the loss of light output from overheating
• Low profile mounting bracket with stainless-steel hardware included

Specifications:

• LEDs: (7) 10 Watt Cree XPL HI
• Power Draw: 5 Amps
• Beam Distance: 1275ft
• Beam Width: 125ft
• Raw Lumens: 7665
• DataDim™ Compatible: Yes
• Operating Voltage: 12 VDC
• Pod Size: 4.4in Round x 3.9in Deep
• IP67 Waterproof & Submersible

What's In The Box?

• 1x LED light pod
• 1x Hinge mount with M8 stainless-steel hardware
• 1x 4in wiring pigtail
• 2x Zip ties
• 1x adhesive mounting square
