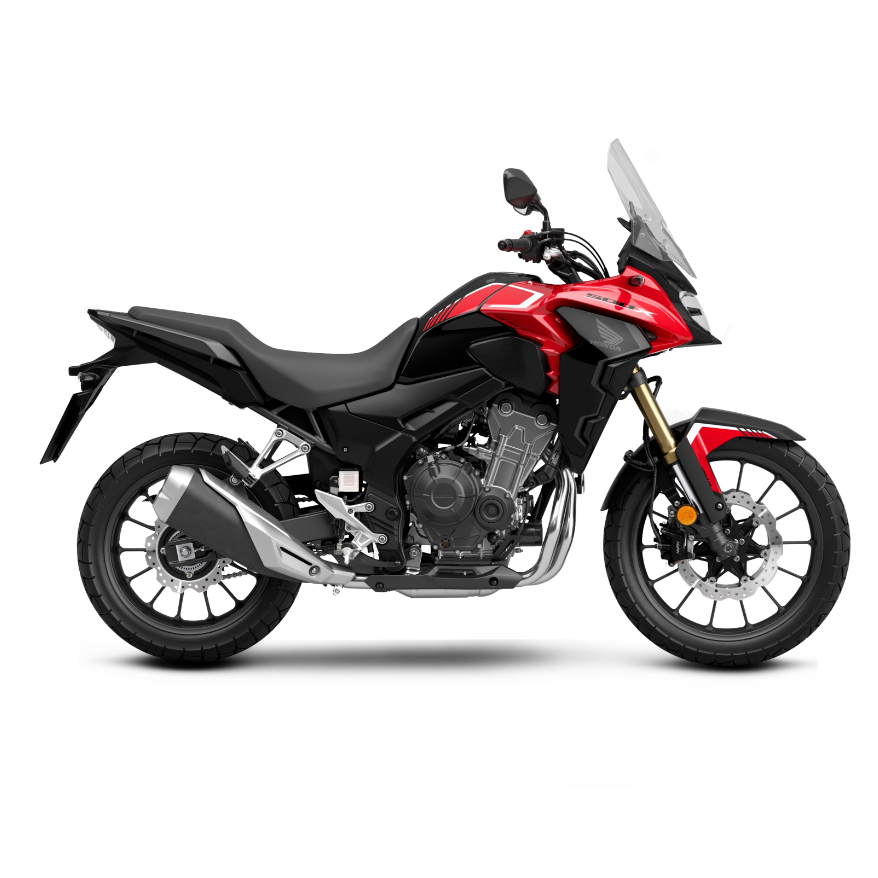

The CB500X is loaded with rugged style, upgraded high-quality long-travel suspension and brakes all powered by a twin cylinder engine that
puts real, enjoyable performance in your right hand. The Showa SFF-BP USD forks provide excellent suspension reaction and control and dual
296mm discs are worked by two-piston callipers, giving more braking power with no inertia gain. Engine improvements mean a muscular
bottom and mid-range with 43Nm of torque at just 6,500rpm.
You know where you want to go and the CB500X is ready to take you there, with a comfortable, upright riding position (seat height
of just 830mm), 17.5L fuel tank and effective wind deflection, you’ll be ready to ride in comfort all day or for the commute. Wide
handlebars give great low speed control for traffic around town. Full LED lighting with optimised high/low beam headlight and
the front indicators are also position lights for extra visibility.
-
Comfort - Thick seat with an upright riding position and tall windscreen
-
Adventure ready - 19" front wheel with long travel suspension, and Honda Pro-Link rear suspension
-
Added safety - Front and rear disc brakes, combined with standard Anti-lock Braking System (ABS)
-
Economical performance - 471cc fuel injected twin-cylinder engine
Engine Type |
Liquid-cooled DOHC Parallel Twin |
CC Rating |
471cc |
Bore and Stroke |
67mm X 66.8mm |
Ignition |
Full-transistorized type |
Fuel System |
PGM-FI, Electronic Fuel Injection |
Compression Ratio |
10.7:1 |
Starter |
Electric |
Gearbox |
6 Speed |
Final Drive |
Chain |
WHEELS, SUSPENSION & BRAKES
Suspension Front |
Conventional Telescopic, 41 mm, Pre load adjustable |
Suspension Rear |
Pro-link mono with 9 stage Preload adjuster |
Brakes Front |
Single two-piston caliper w/ 320mm petal-style disc; ABS |
Brakes Rear |
Single one-piston caliper w/ 240mm petal-style disc; ABS |
Tyres Front |
120/70ZR – 19 M/C (On-Off Pattern) |
Tyres Rear |
160/60ZR – 17 M/C (On-Off Pattern) |
Rake Caster Angle |
27° 27’ |
Wheelbase |
1,443mm |
Seat Height |
834mm |
GroundClearance |
181mm |
Kerb Weight |
197kg |
Fuel Capacity |
17.7 litres |
Dimensions |
2,156mm(L) x 828mm(W) x 1,412mm(H) |
